주요사양
SPECIFICATIONS
주요사양
SPECIFICATIONS

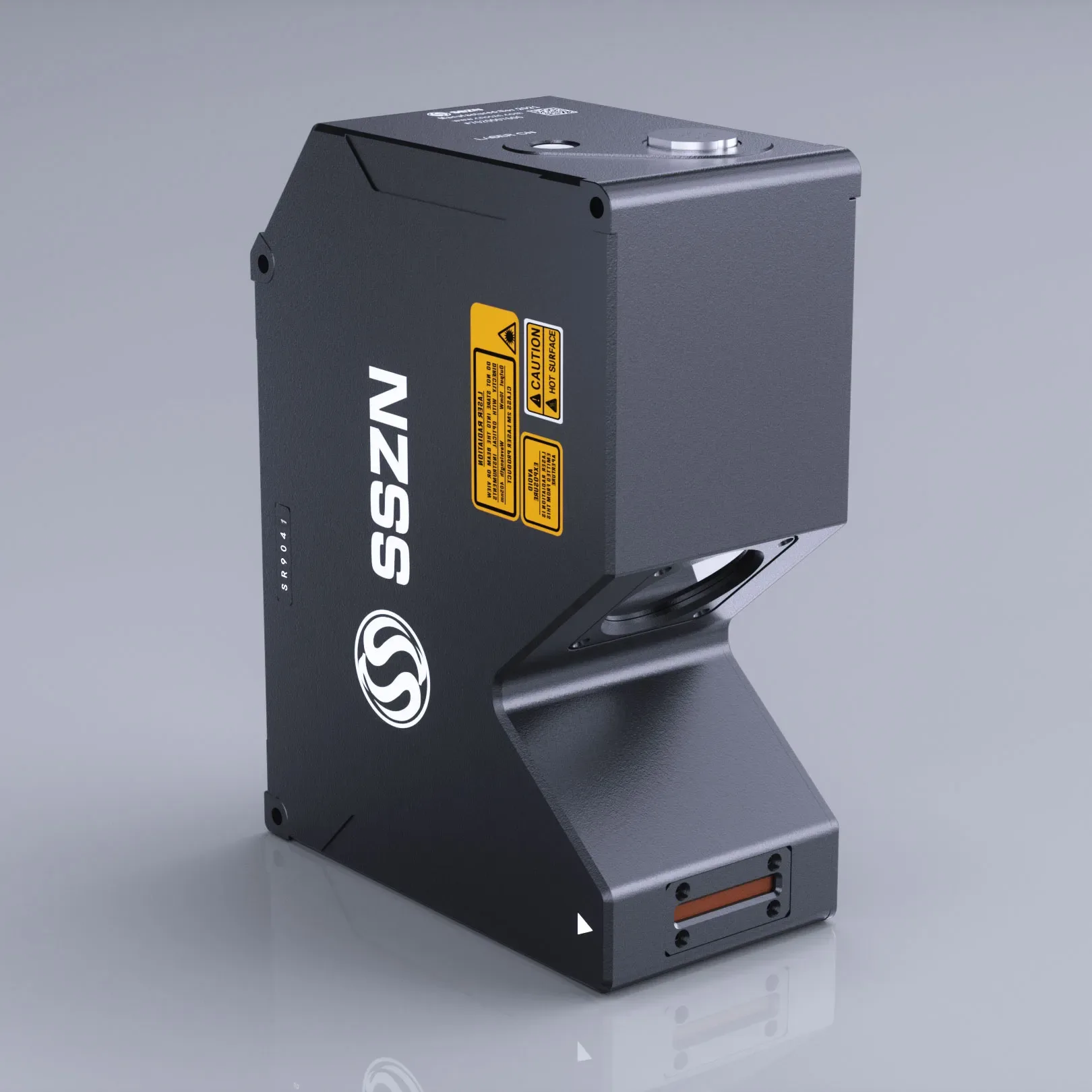

Model |
SR9041 |
Technique |
3D Laser Profiler |
|---|---|---|---|
X-axis contour points |
6400 px |
Max.FOV |
18~20mm |
Max.X-axis Optical Resolution |
3.5um |
Max.Z-axis Optical Resolution |
0.07um |
Z Repeatability |
0.1um |
Measuring Range |
8.6mm |
Measurement Speed |
1.5KHz~13KHz |
Interface |
GigE |
WD |
42mm |
Maker |
SSZN |
