주요사양
SPECIFICATIONS
주요사양
SPECIFICATIONS
Model |

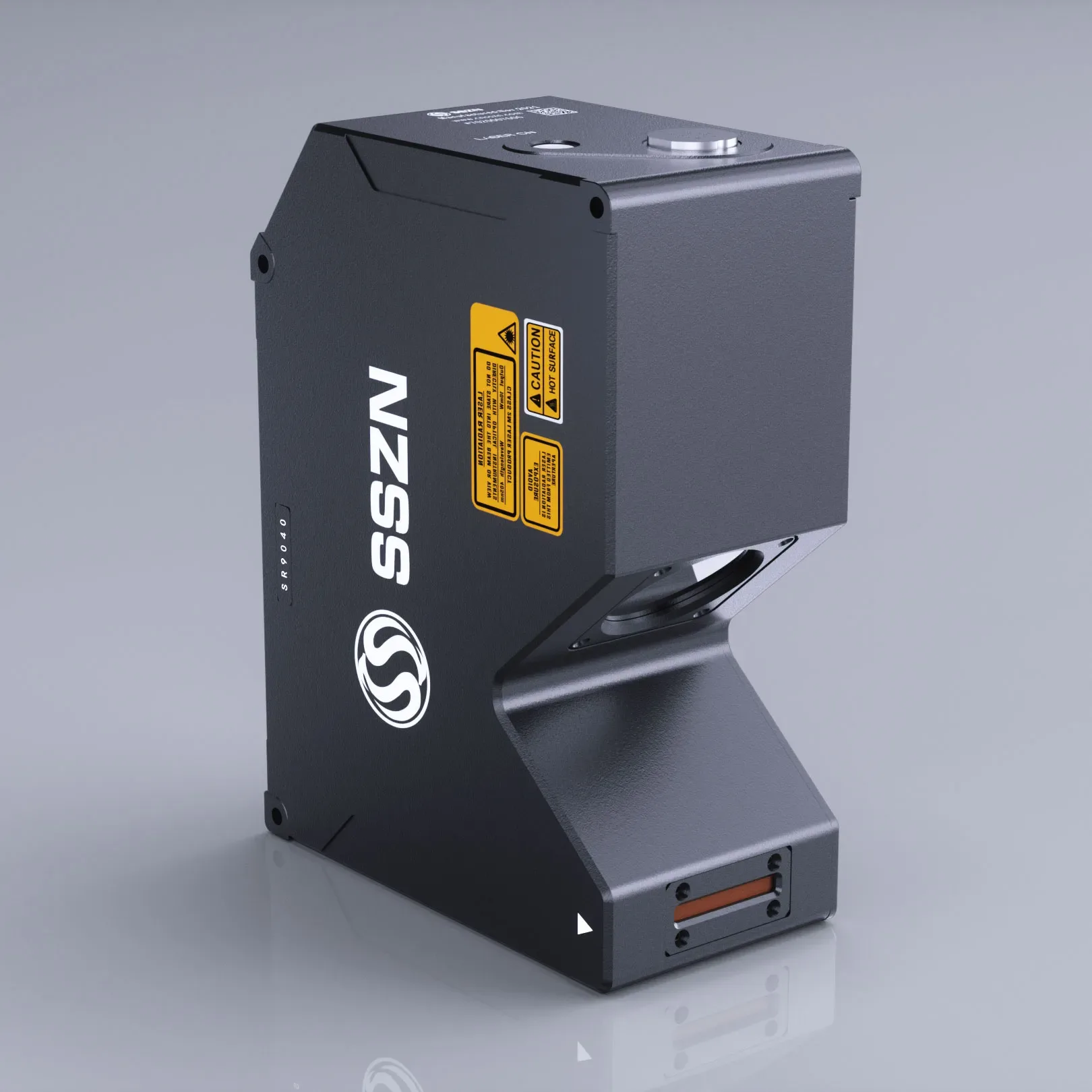

SR9040 |
Technique |
3D Laser Profiler |
|---|---|---|---|
X-axis contour points |
6400 px |
Max.FOV |
16.2~18mm |
Max.X-axis Optical Resolution |
3um |
Max.Z-axis Optical Resolution |
0.06um |
Z Repeatability |
0.1um |
Measuring Range |
6.6mm |
Measurement Speed |
1.5KHz~13KHz |
Interface |
GigE |
WD |
40mm |
Maker |
SSZN |
