주요사양
SPECIFICATIONS
주요사양
SPECIFICATIONS

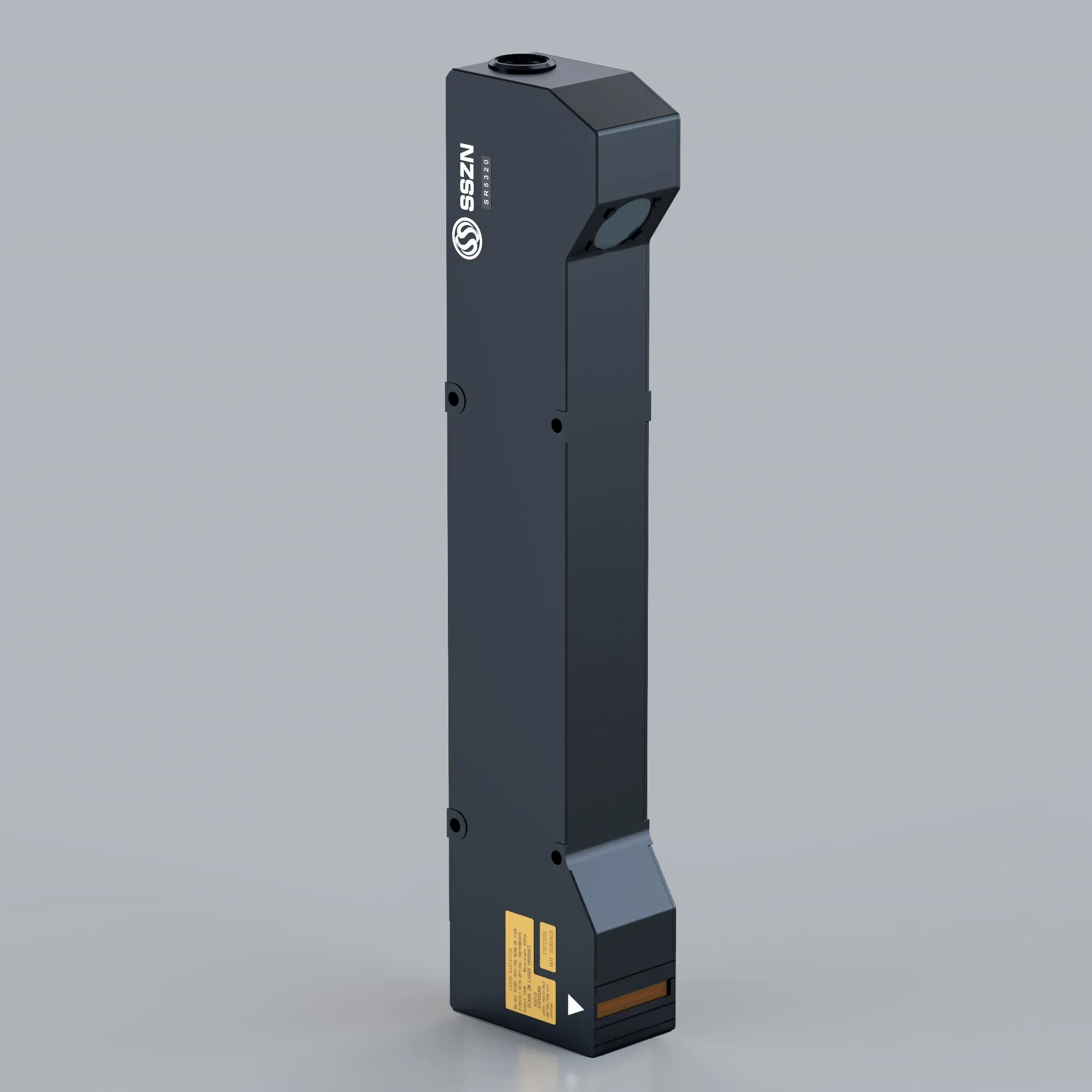

Model |
SR5220 |
Technique |
3D Laser Profiler |
|---|---|---|---|
X-axis contour points |
3200 px |
Max.FOV |
440~640mm |
Max.X-axis Optical Resolution |
200um |
Max.Z-axis Optical Resolution |
4.86um |
Z Repeatability |
8um |
Measuring Range |
340mm |
Measurement Speed |
4KHz~67KHz |
Interface |
GigE |
WD |
350mm |
Maker |
SSZN |
