VEO_YK Emerald 2.2 / 50

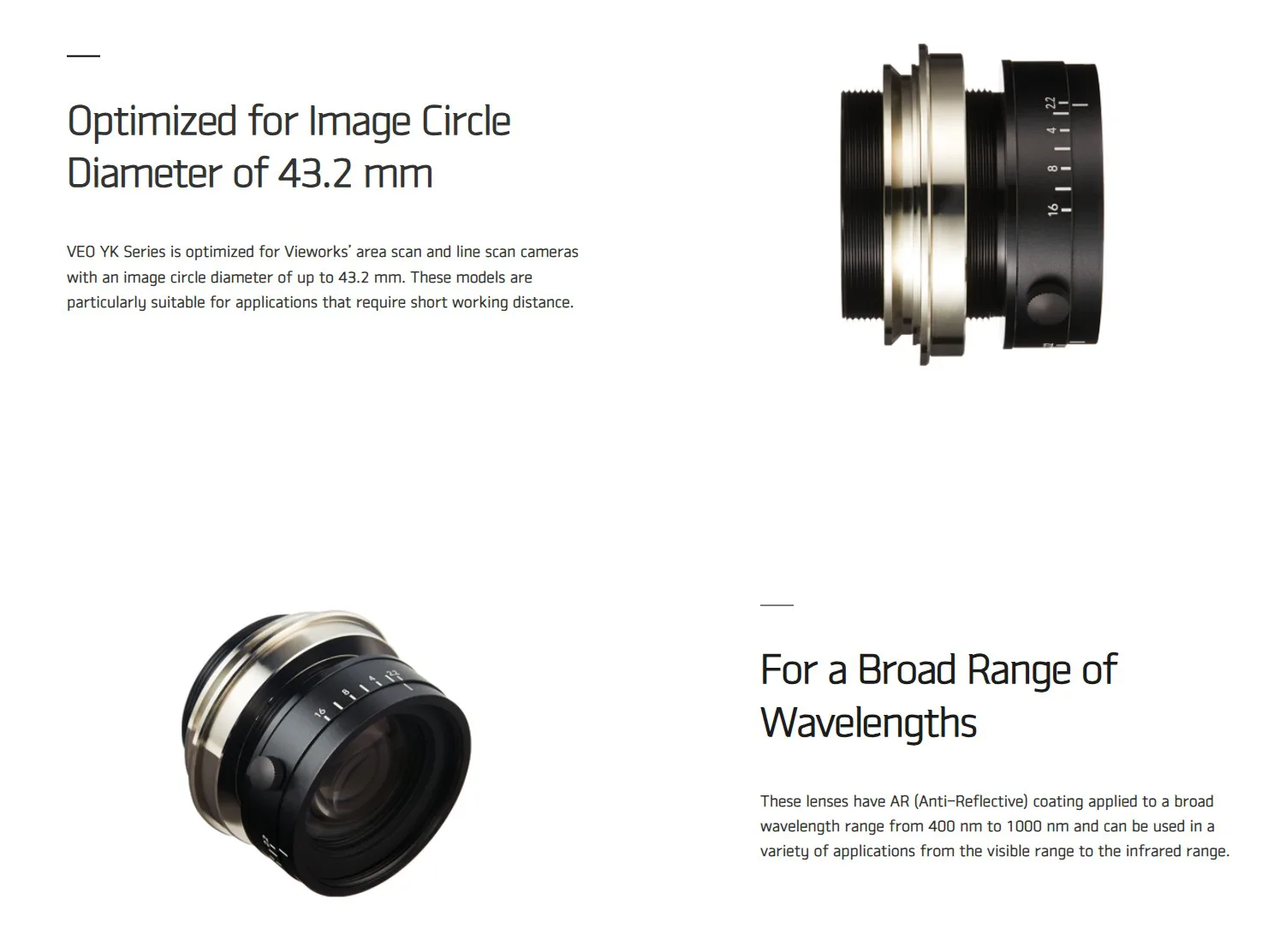

VEO YK Series is optimized for Vieworks’ area scan and line scan cameras with an image circle diameter of up to 43.2 mm. These models are particularly suitable for applications that require short working distance.

VEO_YK Emerald 2.2 / 50 | VEO YK Series is optimized for Vieworks’ area scan and line scan cameras with an image circle diameter of up to 43.2 mm. These models are particularly suitable for applications that require short working distance. | 비투에스 제품 이미지

VEO_YK Emerald 2.2 / 50 | VEO YK Series is optimized for Vieworks’ area scan and line scan cameras with an image circle diameter of up to 43.2 mm. These models are particularly suitable for applications that require short working distance. | 비투에스 제품 이미지

For a Broad Range of Wavelengths

These lenses have AR (Anti-Reflective) coating applied to a broad wavelength range from 400 nm to 1000 nm and can be used in a variety of applications from the visible range to the infrared range.

VEO_YK Emerald 2.2 / 50 제품 소개 설명 이미지 | 비투에스

주요사양
SPECIFICATIONS

Model	VEO_YK Emerald 2.2 / 50	Focal length	50mm
Image circle	φ43.2	F/#	2.2 – 16
Distortion	< 0.2%	Magnification Range	0x – 0.167x
Maker	Vieworks

다운로드
DOWNLOAD

Datasheet_VEO_YK_Emerald_2.2_50_Lens_R002_B2S.pdf

Download
